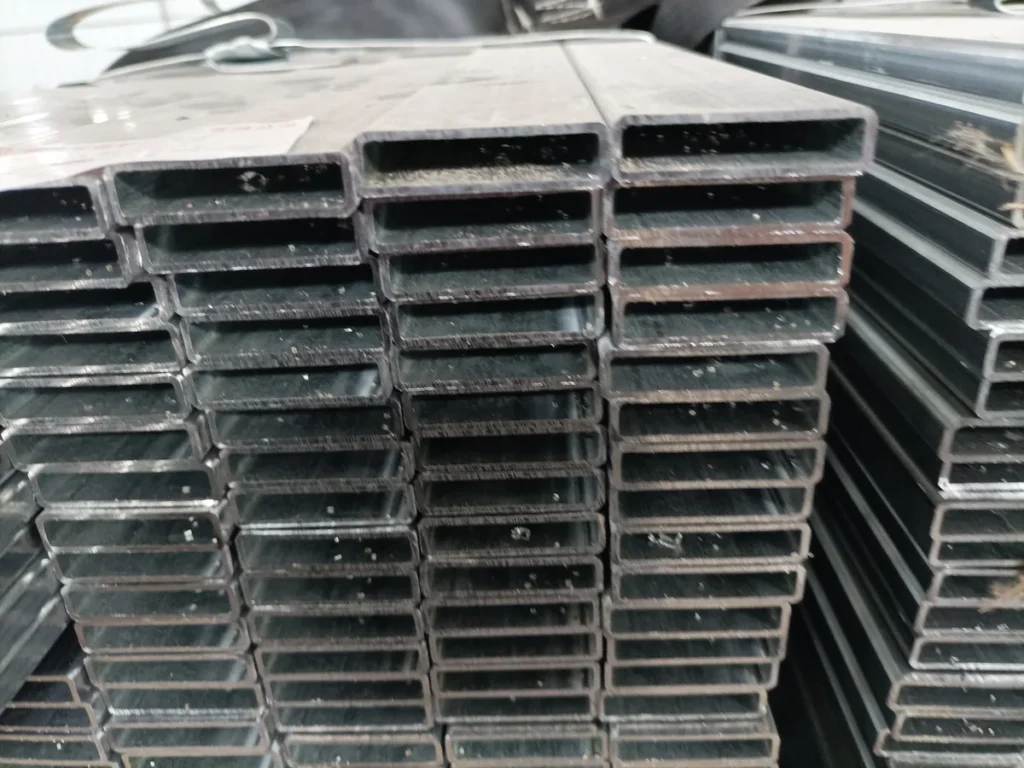

Galvanized Rectangular Pipe & Tube
We supply galvanized steel rectangular tube and GI rectangular pipe for frames, purlins and trailers. Sizes run from 20×10 mm to 400×200 mm, wall 0.8–16 mm. We keep 9,000 tons of galvanized pipe & tube in stock (out of 80,000 tons in total).
Pre-galvanized for indoor frames, hot-dip for outdoor structures
Structural tube to ASTM A500 Gr. B / C, EN 10219 S235JRH / S355J2H and JIS G3444 STK400 / STK500

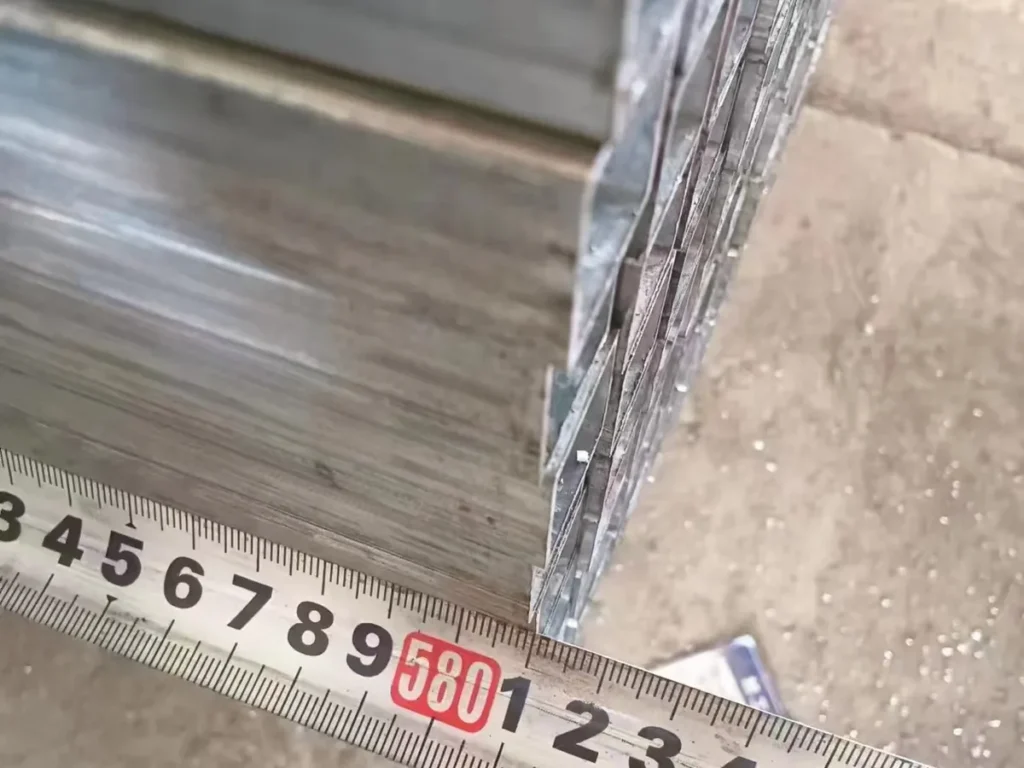

Tolerances on width, height, corner radius and twist checked per lot
Cut to length, punched and notched in house to your drawing
Why Order Galvanized Rectangular Tubing From Us
01
Sizes Read the Same Way Every Time
We confirm width × height × wall, in mm or inch, before we quote. No mix-ups between 100×50 and 50×100 on a cut list.
02
Straight Lengths for Long Spans
Rectangular tube often runs as purlins and rails over long spans. We check straightness on each lot and bundle tight to stop bending in transit.
03
Clear Specifications and Bundle Labels
Tube is supplied to agreed sizes, walls, coatings and standards. Each bundle is labelled, so you can check it against your order on arrival.
04
Coating to Match the Site
Pre-galvanized 60–275 g/m² or hot-dip 300–600 g/m². We suggest the coat once we know where the frame will stand.
Galvanised Rectangular Tube Puts the Steel Where the Load Is
A rectangular section is stiffer about its long side. Set it on edge, and it carries far more load than a square tube of the same weight. That makes galvanised rectangular tube the efficient choice for beams, purlins, rails and trailer chassis.
The flat faces are easy to bolt, weld and clad. The zinc coat removes the paint step on most outdoor frames. You save steel, and you save labor.
Galvanized Rectangular Pipe & Tube Range

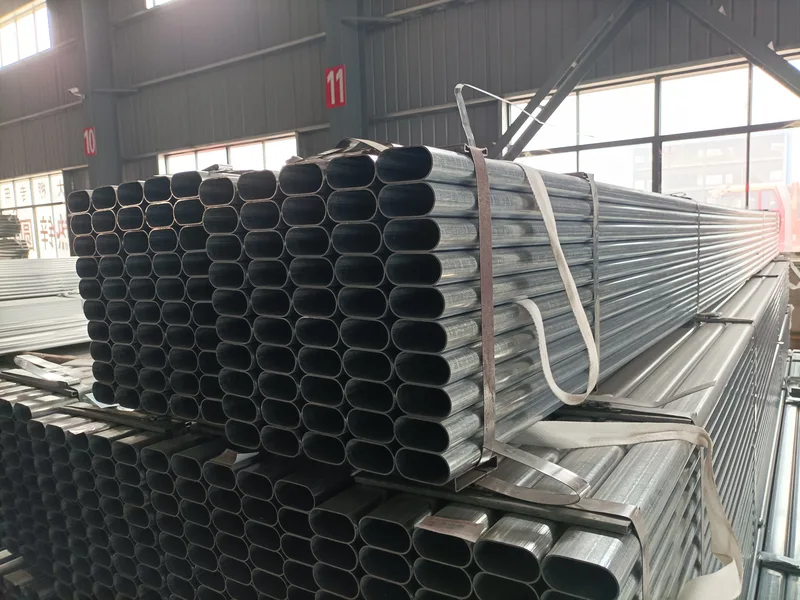

Light Rectangular Tubing
20×10 to 60×40 mm, thin walls. For furniture, shelving, door frames and displays.

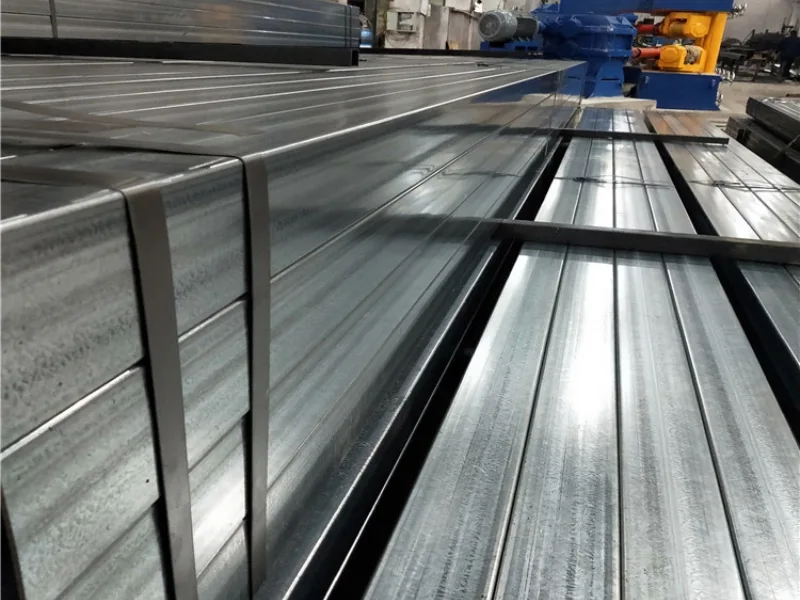

Purlin and Rail Sections
80×40 to 150×50 mm. For greenhouse, carport and solar mounting rails.

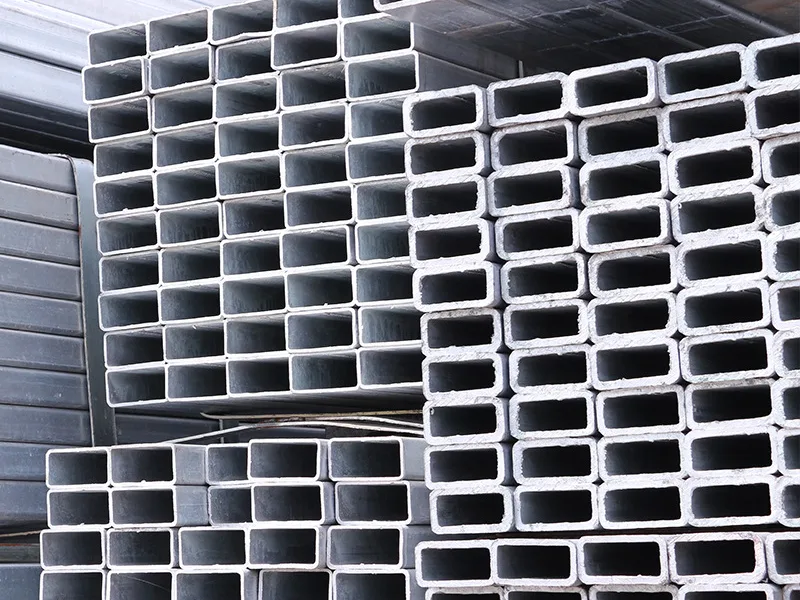

Structural Rectangular Tube
100×50 to 400×200 mm to ASTM A500, EN 10219 or JIS G3444. For beams, trailer chassis and machine bases.

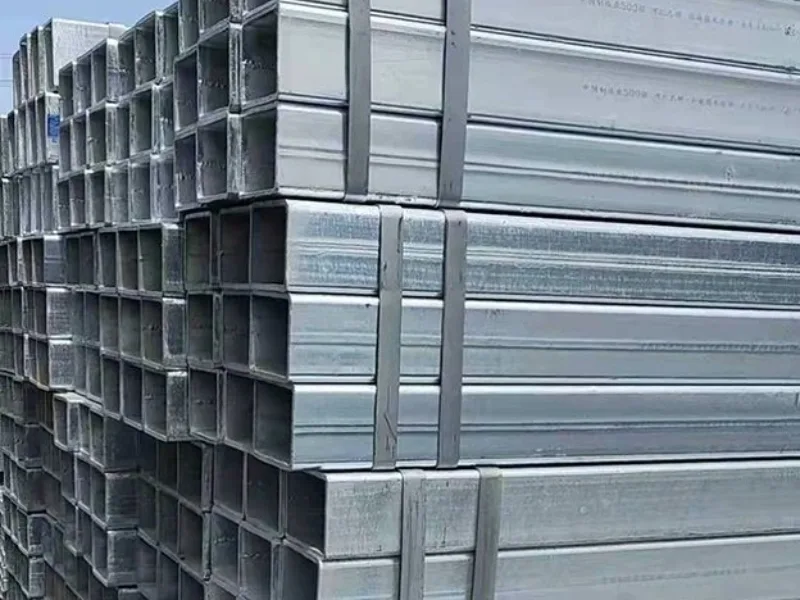

Hot-Dip Galvanized Rectangular Tube
Dipped after forming for coastal, farm and outdoor sites. See Hot-Dip Galvanized Steel Pipe & Tube.
Specifications
| Item | Range |
|---|---|
| Size | 20×10 – 400×200 mm; 1″×1/2″ – 16″×8″ |
| Wall | 0.8 – 16 mm (pre-galvanized 0.8 – 2.5 mm) |
| Steel | Q195–Q355B, EN 10219 S235JRH / S355J2H, JIS G3444 STK400 / STK500; ASTM A500 Gr. B / C |
| Coating | Pre-galvanized 60–275 g/m² (both sides); hot-dip 300–600 g/m²; electro-galvanized 5–20 µm |
| Length | 5.8 m / 6 m / 12 m; 20 ft / 21 ft / 40 ft; or cut to length (e.g. 24 ft) |
| Standards | EN 10219, JIS G3444; zinc to ISO 1461 / AS/NZS 4680; ASTM A500; GB/T 6728 |
How to Specify Galvanized Rectangular Tubing
Write the Size in One Order
Most suppliers write width × height × wall, long side first. So 100×50×3 means a 100 mm long side, 50 mm short side and 3 mm wall. If your drawing puts the short side first, say so. A swapped size is a common, costly mistake.
For inch sizes, write the wall in mm or decimal inch, not only gauge. That way we both read the same thickness.
Turn the Long Side Toward the Load
A 100×50 tube set on edge is about three times stiffer than the same tube laid flat. For purlins and beams, put the long side vertical. For handrails and frames that take load from the side, turn it the other way.
If you are replacing a channel or an angle, rectangular tube often lets you drop one size. It also resists twisting far better. That helps on trailers and long rails.
When Square Tube Is the Better Choice
Choose square tube when load comes from both directions, such as columns and posts. Choose rectangular when the load mostly comes from one side, such as beams, rails and purlins. See Galvanized Square Pipe & Tube for square sizes.
Pre-Galvanized or Hot-Dip
Rectangular sections for indoor frames and furniture work well pre-galvanized. For purlins, carports, solar rails and farm buildings, choose hot-dip. If you need a structural standard and a heavy wall, hot-dip is usually the only option.
Frequently Asked Questions
Is GI rectangular pipe the same as galvanized rectangular tube?
Yes. "GI rectangular pipe" is the common name in Asia and Africa. "Galvanized rectangular tube" is common in the US and Europe. Both are sized by width × height × wall. Neither uses NPS.
What is the largest galvanized rectangular tube you supply?
Up to 400×200 mm with walls up to 16 mm. Large sections are hot-dip galvanized after forming. Tell us your length, since large tubes may need special loading.
Can you punch holes in rectangular tubing before galvanizing?
Yes. We punch, notch and cut before hot-dip galvanizing, so the holes get zinc too. Send a drawing with hole positions and tolerances.
How much does galvanized rectangular tube cost?
Price depends on size, wall, coating and quantity. Steel and zinc prices move it weekly. Send your list, and we will quote within 2–4 working hours. Quotes are valid for 3 days.
