Electro Galvanized Steel Sheet Supplier
We supply electro galvanized steel sheet and coil, 0.3 to 2.0 mm thick. The zinc is plated, not dipped, so the surface is smooth, even and free of spangle.
Zinc from 3 to 40 g/m² per side, set separately for each side
SECC to JIS G3313 and DC01+ZE to DC04+ZE to EN 10152
Phosphated, chromate-free or anti-fingerprint treatment for your finish line
Thickness tolerance as tight as cold-rolled sheet, since plating adds almost nothing
Why Order Electro Galvanized Sheet Metal From Us
01
Surface Ready for Paint
EG sheet has no spangle and no dross. Paint and powder go on smooth. Your rejects from surface marks drop.
02
Coat per Side, Your Way
Plating lets each side carry a different weight. Put more zinc where the part faces the weather, and less inside.
03
Cold-Rolled Base With Tight Gauge
The base is quality cold-rolled steel. The plated coat is a few microns, so your press sees a near-exact gauge.
04
Treatment Matched to Your Line
Choose phosphate for paint, anti-fingerprint for bare panels, or chromate-free for RoHS-sensitive goods.
05
Lead Time Confirmed With Your Quote
Lead time depends on size, coat and treatment, and we confirm it with your quote.
A Thin, Even Zinc Layer for Show Surfaces
Electro galvanizing coats cold-rolled strip with zinc by electric current, in a plating bath at room temperature. No molten zinc is involved. The zinc builds up atom by atom, so it is thin, smooth and uniform.
That surface is the reason to buy EG. Appliance doors, computer cases and control panels need a flawless finish after painting. The steel underneath keeps its cold-rolled properties, because it never meets 460 °C zinc. You get the forming of cold-rolled steel with the rust protection of zinc.
EG Sheet Range

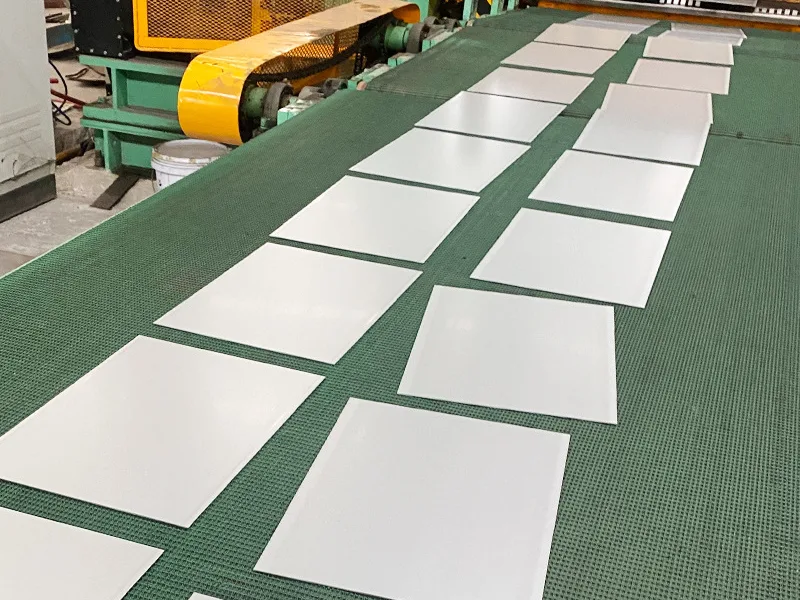

SECC Electro Galv Sheet
Commercial quality to JIS G3313. The most common grade for cases and cabinets.
SECD and SECE
Drawing and deep drawing grades for deeper pressed panels.

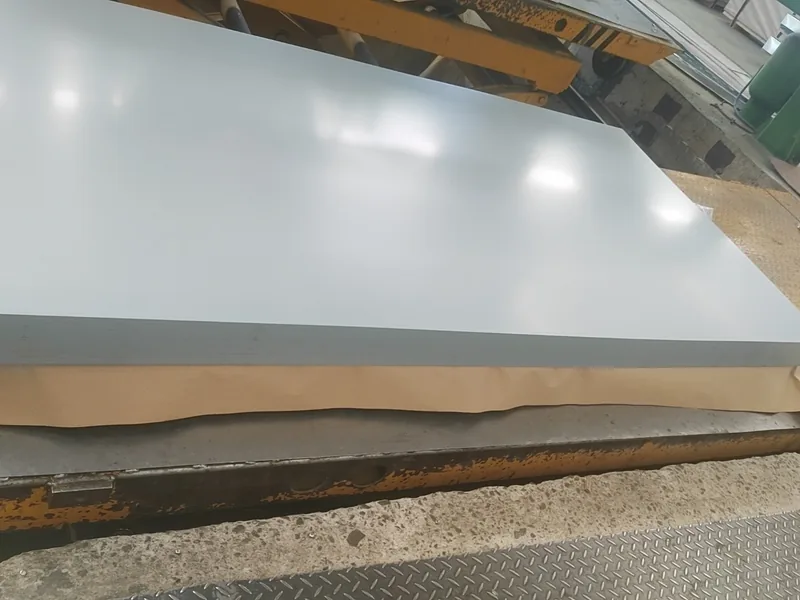

DC01+ZE to DC04+ZE
European grades to EN 10152 for drawing and deep drawing.

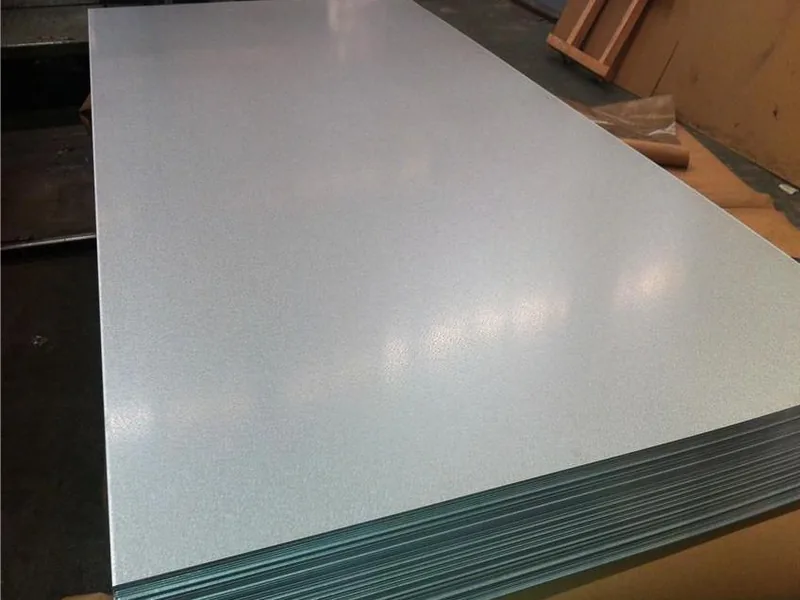

Anti-Fingerprint EG Sheet
Clear organic film on the zinc. Used bare for internal brackets and server chassis.

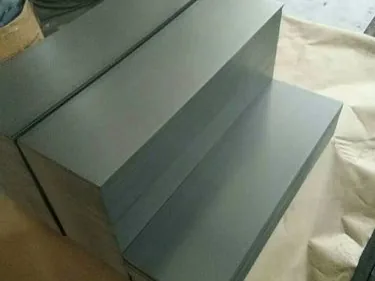

Phosphated EG Sheet
Phosphate layer for paint and powder lines. Better adhesion and under-film protection.
Specifications
| Item | Range |
|---|---|
| Process | Continuous electro galvanizing |
| Grades | SECC, SECD, SECE (JIS G3313); DC01+ZE–DC04+ZE (EN 10152) |
| Thickness | 0.3–2.0 mm |
| Width | 600–1500 mm |
| Zinc coating | 3–40 g/m² per side, equal or differential (e.g. 20/20, 20/0) |
| Treatment | Phosphated, chromated, chromate-free, anti-fingerprint, oiled |
| Surface | Spangle-free, matte grey |
| Form | Coil, slit coil, sheet |
Electro Galvanized or Hot-Dip: Choosing for Your Part
Both products are zinc-coated steel. But they are made in different ways, and they solve different problems. Most wrong orders come from choosing on price alone.
How the Two Coats Differ
Hot-dip sheet runs through molten zinc. It picks up 30 to 140 g/m² per side, with a thin alloy layer underneath. Electro galvanized sheet is plated. It carries far less zinc, often 3 to 20 g/m² per side, as pure zinc.
So hot-dip protects longer in weather. Electro galvanized protects well under paint and indoors. It also looks better and holds closer tolerances.
When EG Is the Right Choice
Choose EG steel sheet when the part will be painted and seen. Washing machines, ovens, PCs and electrical panels are typical. Choose it when the press work is deep and the coat must not flake. And choose it when gauge tolerance matters, such as for precise snap-fit parts.
When Hot-Dip Is Better
Choose hot-dip for roofing, ducts, outdoor frames and anything unpainted outside. The thin EG coat will not last long in rain and sun. Hot-dip also costs less per unit of zinc.
Watch the Treatment
Many problems with EG come from the treatment, not the zinc. Phosphated sheet is for paint lines. Anti-fingerprint sheet is for bare use; paint may not stick to it. Oiled sheet must be cleaned before painting. Tell us your process, and we will match the treatment.
British and Asian Names
UK buyers may write electro galvanised steel sheet or “Zintec”. In Asia, SECC and EGI are common. “EG” is the short form in most of the market. All of these point to the same plated product, but grades and coat weights still need to be stated.
Frequently Asked Questions
What is EG sheet?
EG sheet is electro galvanized steel sheet. It is cold-rolled steel plated with a thin, even layer of zinc. It has no spangle and is mainly used for painted panels, appliances and electrical enclosures.
What is SECC steel?
SECC is the Japanese JIS G3313 grade for electro galvanized commercial quality sheet. It is the most common EG grade in Asia. SECD and SECE are the drawing and deep drawing versions.
Can electro galvanized sheet be used outdoors?
Only when painted or protected. The zinc layer is thin, often under 3 µm. Bare outdoors, it will show rust much sooner than hot-dip sheet. For bare outdoor parts, choose hot-dip galvanized.
Can you weld electro galvanized steel?
Yes. The thin zinc layer makes spot welding easier than on hot-dip sheet. Electrode life is longer and fumes are less. Remove any anti-fingerprint film from weld areas if your process needs bare contact.
What is the electro galvanized steel sheet price compared with hot-dip?
EG sheet usually costs more per ton than hot-dip of similar thickness. The plating line is slower and the base is quality cold-rolled steel. Grade, coat and treatment also affect cost. Send your spec, and we will quote within 2–4 working hours, or within 8 working hours for custom specs.
Request a Quote
We reply within 2–4 working hours with a price per ton, valid for 3 days.
