SS 316 Rod Supplier

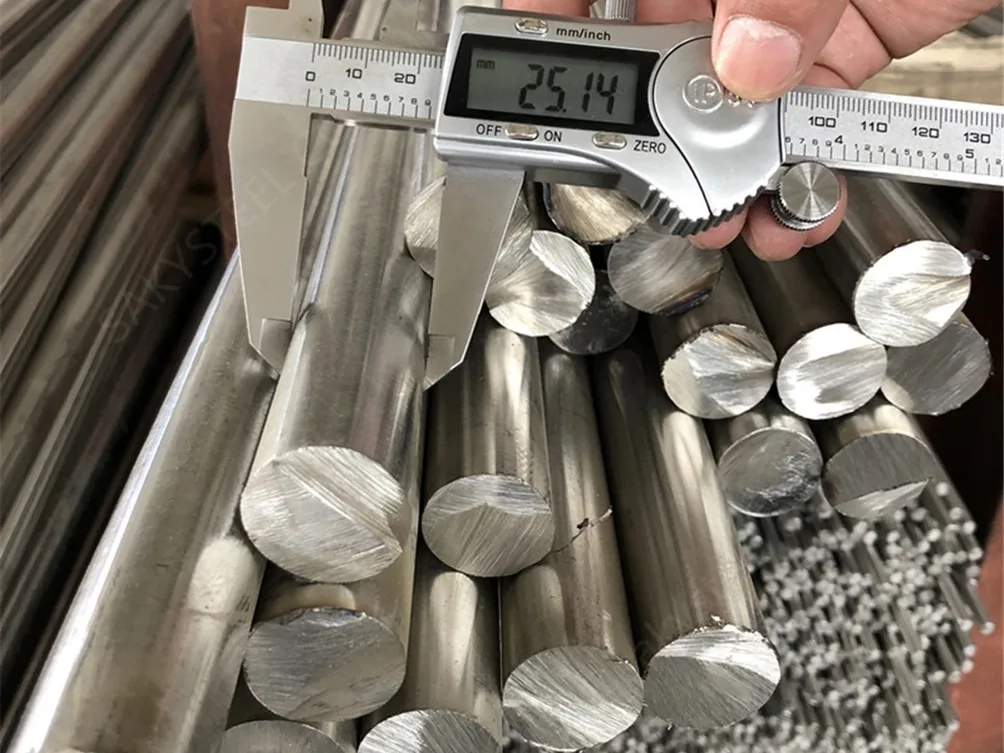

MTS supplies SS 316 rod and 316L stainless steel round bar for marine, chemical and medical parts. Diameters run from 3 mm to 300 mm, cold drawn, ground, polished or forged black.
316 and 316L to ASTM A276, A479 and EN 10088-3 (1.4401 / 1.4404)
Molybdenum held at 2.0–3.0%, shown on every certificate
Cold drawn bar to h9–h11; ground bar to h7/h8, Ra 0.2–0.8 µm

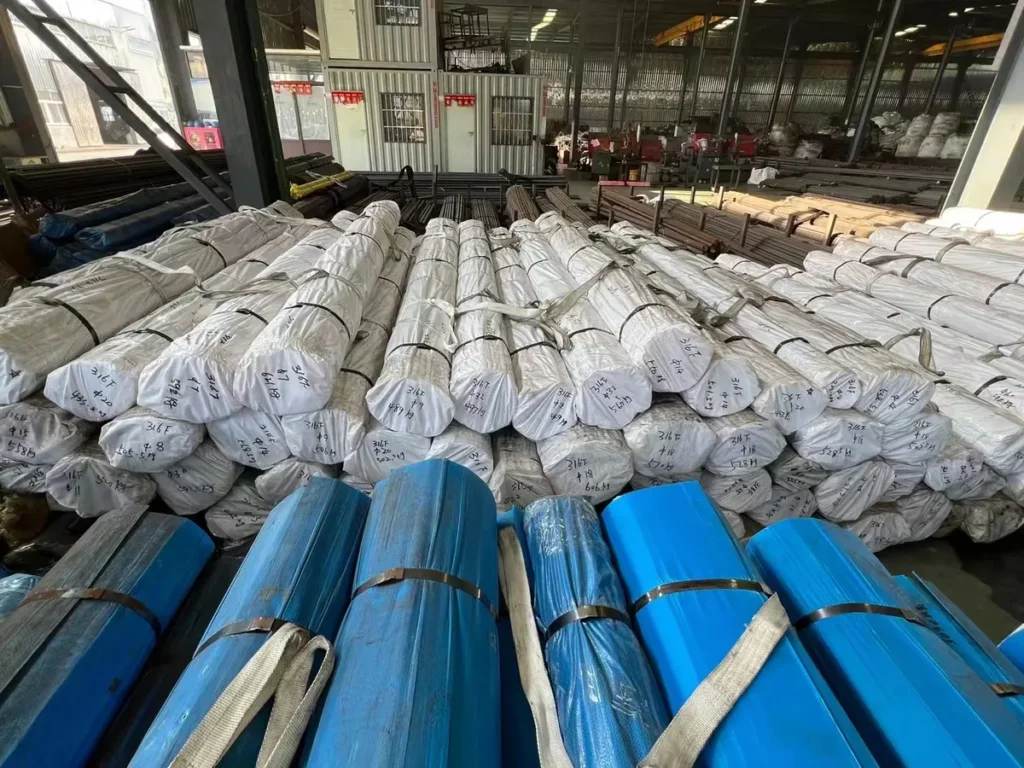

Part of our 4,500 tons of stainless bar stock in Wuxi
Why Order 316 Stainless Round Bar From Us
01
Every Route From 3 to 300 mm
Cold drawn bar from Φ3 to Φ100 mm, ground bar for precision parts, and forged black bar up to Φ300 mm. You get the whole 316 size range from one supplier.
02
Molybdenum You Can Check
316 depends on molybdenum for its pitting resistance. Our certificates show the actual Mo value per heat, not just “conforms”.
03
Free-Machining 316
For high-volume turned parts, we supply free-machining 316 round bar from Φ4 to Φ125 mm. It cuts faster than standard 316 and keeps most of its corrosion resistance.
04
Stock in Wuxi, Ports Close By
316 and 316L bar in common sizes ship from our Wuxi stock. Containers load at Shanghai, Qingdao or Tianjin.
Built for Salt, Chlorides and Clean Processes
316 adds 2–3% molybdenum to the 18-8 base of 304. That small change raises pitting resistance a lot. 316 rod handles seawater spray, brine, mild acids and cleaning chemicals that would stain 304.
Choose ss 316 round bar for parts that live outdoors near the sea, or in chemical and pharma plants. Indoors and dry, 304 does the same job for less.
316 Stainless Steel Round Bar Range

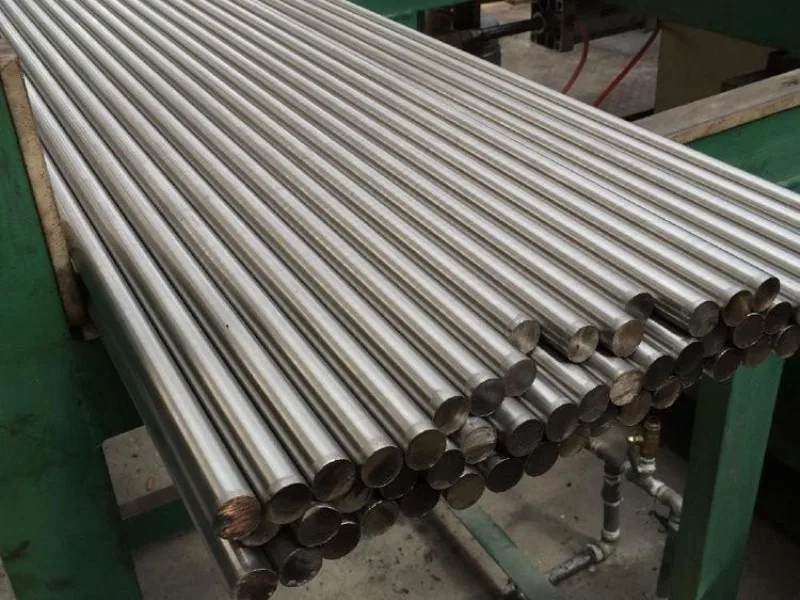

316 Stainless Steel Round Bar
Standard grade for marine fittings, pump shafts and valve parts. Also ordered as 316 round bar or round bar SS316.

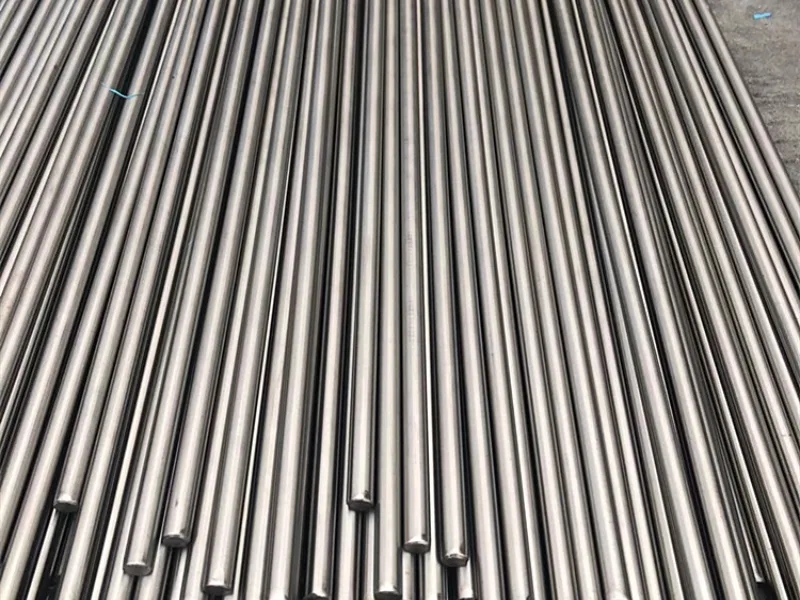

316L Stainless Steel Round Bar
Carbon max 0.03%, for welded parts. 316L stainless steel rod is our most-requested 316 item.

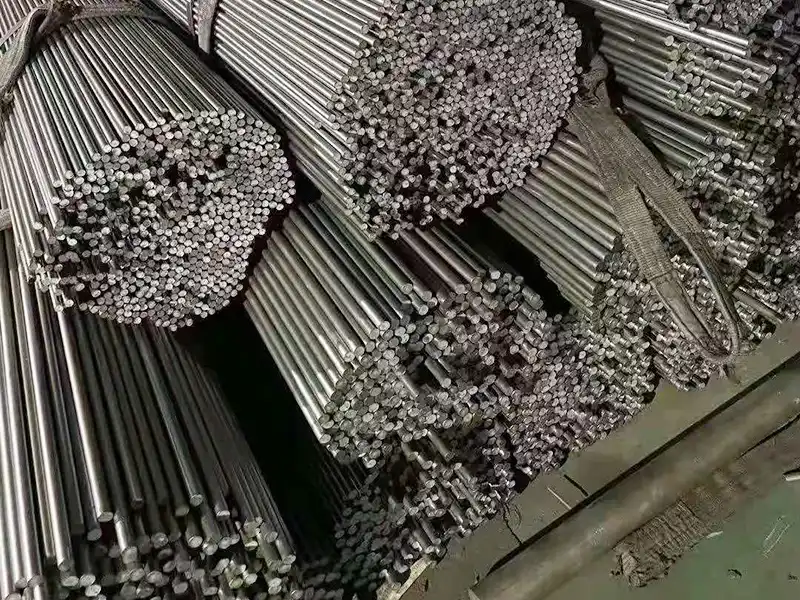

Free-Machining 316 Round Bar
Sulfur-bearing 316 for CNC turning, Φ4–125 mm round and Φ5–30 mm ground.

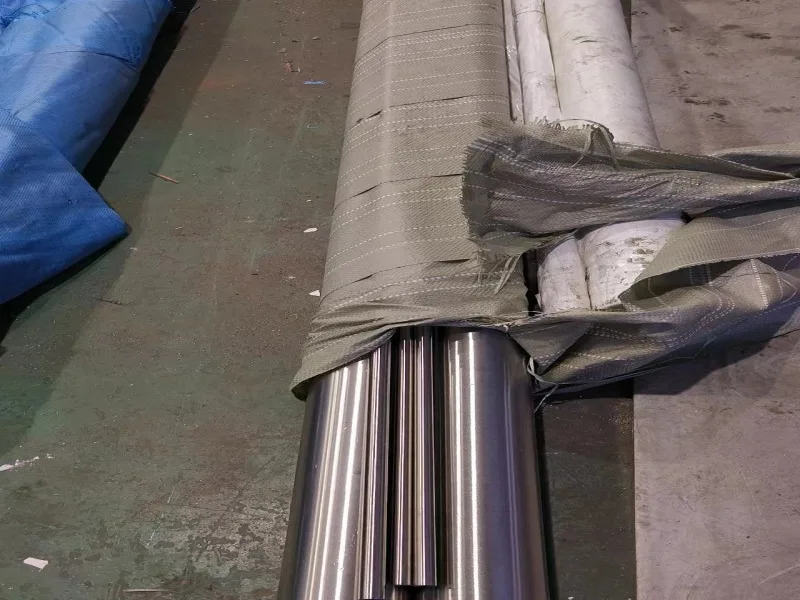

316Ti Round Bar
Titanium-stabilized 316 for welded parts in hot service. Common on European drawings as 1.4571. Supplied by mill order.

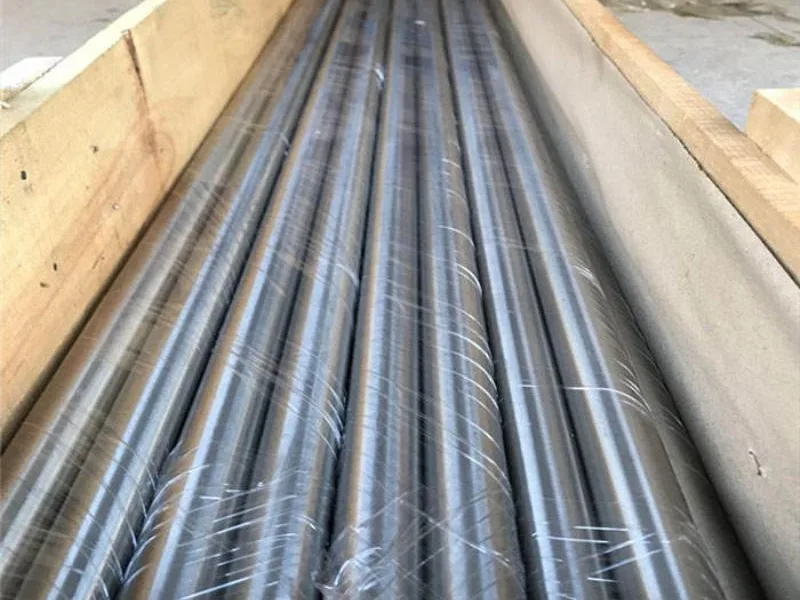

317L Round Bar
3–4% molybdenum, for stronger acids and chlorides than 316L can handle. Supplied by mill order.

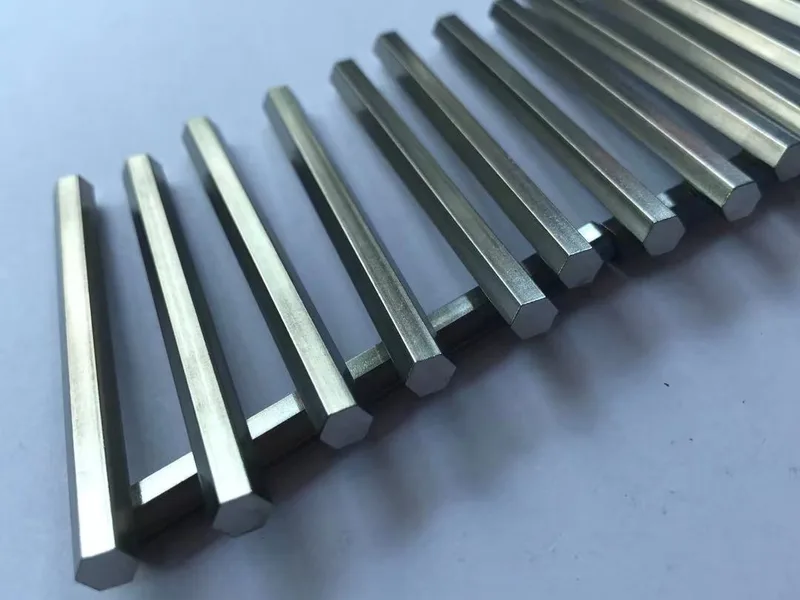

316 Square and Hex Bar
316 square bar from 10 to 100 mm and 316 stainless steel hex bar from 8 to 120 mm across flats, for nuts, fittings and marine hardware.

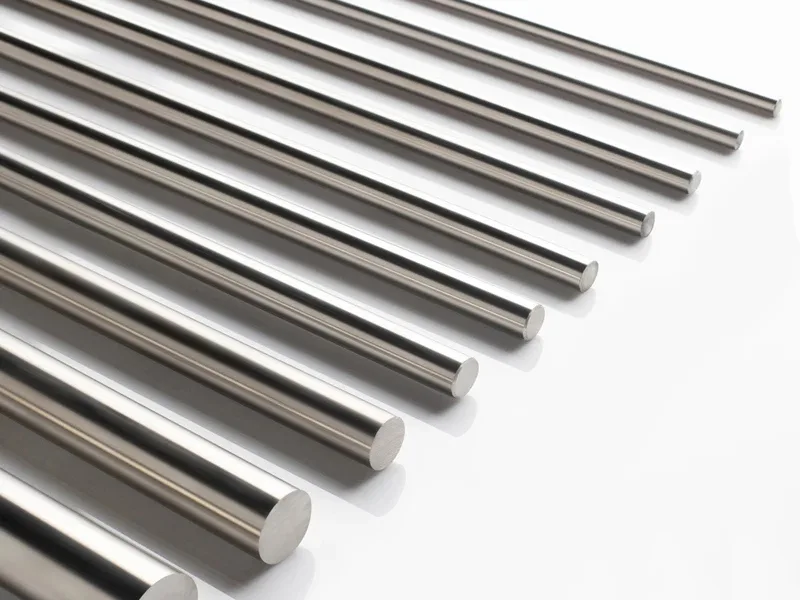

Small Diameter 316 Rod
3mm, 6mm, 8mm and 10mm 316 stainless steel rod, and 5/16” 316 rod, cold drawn and cut to length.
Specifications
| Item | Range |
|---|---|
| Grades | 316, 316L, 316/316L dual, free-machining 316; 316Ti and 317L by mill order |
| Equivalents | UNS S31600 / S31603 / S31635 / S31703; EN 1.4401 / 1.4404 / 1.4571 / 1.4438; JIS SUS316 / SUS316L |
| Cold drawn bright bar | Φ3–100 mm; 1/8”–2” and up; h9–h11; Ra 1.6–6.3 µm |
| Ground bar | Φ5–30 mm; h7/h8; Ra 0.2–0.8 µm |
| Polished / large bright bar | Φ4–60 mm polished; Φ60–200 mm bright |
| Forged black bar | Φ200–300 mm; peeled on request |
| Square / hex bar | 10–100 mm square; 8–120 mm hex |
| Length | 2 m, 3 m, 6 m; 9 m and 12 m on request |
| Finish | Bright, ground, polished, pickled, brushed, black |
| Standards | ASTM A276, ASTM A479, EN 10088-3, JIS G4303 |
SS 316 Rod: Where It Works and Where It Stops
316 is often called “marine grade”. That label is half true. 316 rod resists chlorides far better than 304, but it has limits. Knowing them saves you from failures and from paying for grades you do not need.
316, 316L or 316Ti?
Standard 316 allows up to 0.08% carbon. 316L limits carbon to 0.03%, so welded zones keep their corrosion resistance. For most buyers, dual-certified 316/316L bar is the simplest choice.
316Ti adds titanium to tie up carbon. It is a European habit, often written as 1.4571. It suits welded parts that run hot, above about 400°C. If your drawing says 1.4571, order 316Ti round bar. If not, 316L does the same job and is easier to find.
Why Molybdenum Content Matters
The 316 spec allows Mo from 2.00% to 3.00%. Bar near the bottom of that range passes the spec, but pits sooner than bar at 2.2–2.5%.
If your part sees seawater or chlorides, set a minimum Mo on your order, such as 2.10%. We show the actual value on the certificate, so you can see what you received.
How Far Can 316 Go in Chlorides?
316L handles seawater spray, splash zones and rinsed marine fittings well. It struggles in stagnant seawater, under gaskets and in warm brine. There, crevice corrosion can start within months.
A useful guide is the pitting resistance number, PREN. 304 sits near 18–20. 316L sits near 24–26. Duplex 2205 sits near 35, and super duplex above 40.
For fully submerged or warm chloride service, 316 is not enough. Look at 317L, 904L or Duplex Round Bar instead.
When to Step Up From 316
317L adds more molybdenum. It suits stronger acids in pulp, paper and chemical plants.
904L adds copper and much more nickel. It handles sulfuric acid and warm seawater better than 317L.
Duplex 2205 gives higher PREN and twice the yield strength. For shafts and fasteners, it often lets you use a smaller diameter.
If your part is indoors, dry or in fresh water, do not step up at all. 304 will do.
Machining 316 Rod
316 is gummier than 304 and work-hardens quickly. Use sharp tools, steady feed and plenty of coolant. Do not let the tool rub.
For high-volume turned parts, choose free-machining 316. Its added sulfur breaks chips short and extends tool life. For welded parts, stay with 316L.
Medical and Pharma Use
316L bar is common in surgical tools, pharma fittings and lab equipment. Implants need special implant grades, such as 316LVM to ASTM F138.
Frequently Asked Questions
What is the difference between 316 rod and 316L rod?
316L has lower carbon, 0.03% max versus 0.08%. This keeps weld zones from corroding. 316 has slightly higher minimum strength. Dual-certified bar meets both specs, so you rarely need to choose.
Is SS316 rod suitable for boat parts?
Yes, for fittings, cleats, rails and above-water parts. For propeller shafts and fully submerged parts, duplex or special shaft alloys usually last longer. Keep 316 clean and avoid tight crevices that trap seawater.
Is 316 rod magnetic?
Annealed 316 is non-magnetic. It stays less magnetic than 304 after cold drawing, because its higher nickel stabilizes the structure. Very heavily drawn small rod can show slight magnetism.
Is free-machining 316 as corrosion resistant as standard 316?
Not quite. The sulfur that helps it machine also creates small weak points for pitting. It still outperforms 304 in most chloride service. For seawater immersion or welded parts, choose 316L.
Do you supply 316L stainless steel round bar suppliers and stockists?
Yes. We ship 316L bar to distributors in mixed-size containers, from our Wuxi stock. Each bundle is tagged with size and grade. Ask for our current stock list.
How fast can you quote 316 bar?
Send your grade, sizes and quantities. We reply within 2–4 working hours, and our price holds for 3 days.
Related Products
Request a Quote
We reply within 2–4 working hours with a price per ton, valid for 3 days.
